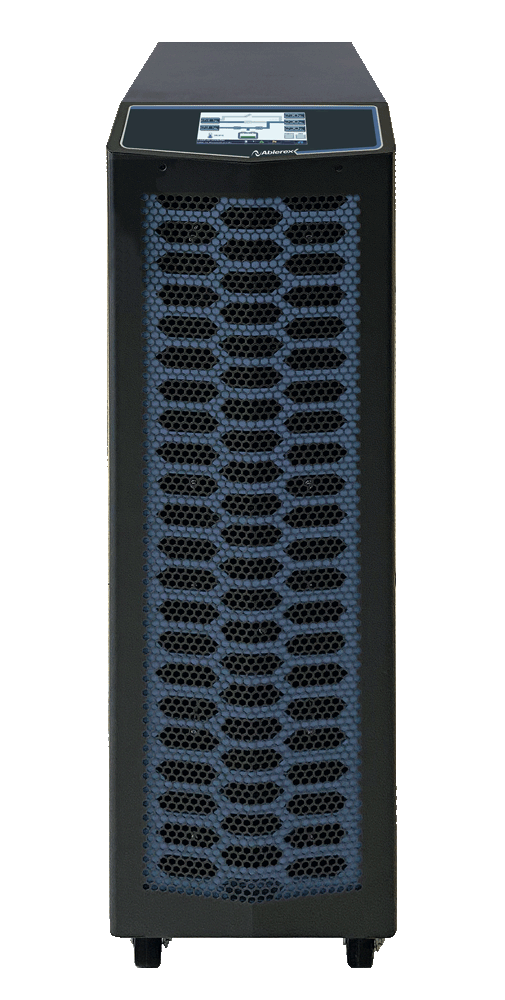

Kronos Plus 10-40 kVA
Three-phase UPS with power factor 1 and compact footprint
Capacity: 10-40 kVA
Request QuoteOverview
The ABLEREX Kronos Plus delivers three-phase online double conversion from 10 to 40 kVA. Power factor 1.0 with THDi less than 3% and up to 95% online efficiency (98% in Eco mode). Compact 0.22 m2 footprint for 20 kVA model. Variable battery configuration supporting 26-40 blocks of 12V with lithium-ion compatibility. Available in 3:3 or 3:1-3 interchangeable versions. Up to 6 units in parallel.
Key Features
Power factor 1.0 — kW equals kVA
Up to 95% online efficiency, 98% in Eco mode
Compact 0.22 m2 footprint (20 kVA)
Lithium-ion battery compatible
4.3" color LCD touchscreen, 14 languages
Up to 6 units in parallel
Applications
Technical Specifications
| Topology | Online double conversion (VFI) |
| Capacity | 10 / 15 / 20 / 30 / 40 kVA |
| Power Factor | 1.0 (kW = kVA) |
| Efficiency | Up to 95% online, 98% Eco mode |
| THDi | < 3% |
| Footprint | 0.22 m² (20 kVA) |
| Dimensions | 26W × 85D × 89H cm |
| Battery | 26-40 blocks of 12V, lithium-ion compatible |
| Configuration | 3:3 or 3:1-3 interchangeable |
| Parallel | Up to 6 units |
| Display | 4.3" color LCD touchscreen, 14 languages |
| Connectivity | RS232, USB, 2 optional card slots |
