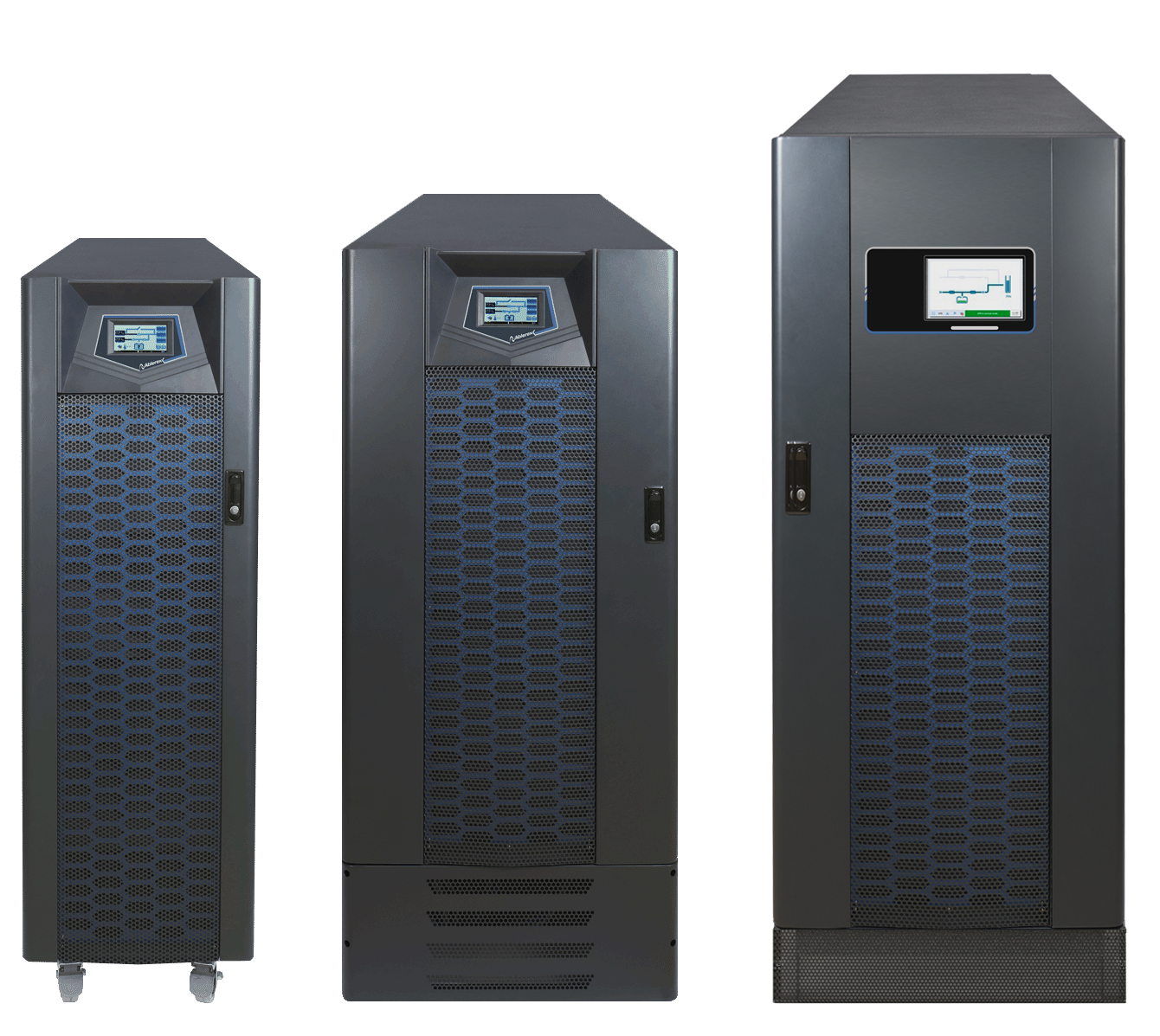

Taurus 10-200 kVA
Three-phase UPS with patented energy regeneration technology
Capacity: 10-200 kVA
Request QuoteOverview
The ABLEREX Taurus provides three-phase power protection from 10 to 200 kVA with power factor 1 and up to 99% efficiency in Eco mode (2ms transfer time). Features the patented GLM function for regenerative load energy reuse and 300% overload capacity across all modes. Up to 6 units in parallel (8 for 200 kVA). 10.1" color LCD touchscreen, lithium-ion compatible, and Energy Saver function with smart battery self-testing.
Key Features
Power factor 1 (kW = kVA)
Up to 99% efficiency in Eco mode with 2ms transfer
Patented GLM — regenerative load energy reuse
300% overload capacity in all modes
10.1" color LCD touchscreen
Up to 6 units in parallel (8 for 200 kVA model)
Applications
Technical Specifications
| Topology | Online double conversion (VFI) |
| Capacity | 10 / 20 / 30 / 40 / 60 / 80 / 200 kVA |
| Power Factor | 1.0 (kW = kVA) |
| Efficiency | Up to 99% in Eco mode (2ms transfer) |
| THDi | < 3% |
| Overload | 300% in all modes |
| Parallel | Up to 6 units (8 for 200 kVA) |
| Battery | 26-40 blocks (10 kVA), 32-40 blocks (20-80 kVA) |
| GLM Function | Patented regenerative load energy reuse |
| Cold Start | Standard (up to 20 kVA), optional (30-80 kVA) |
| Display | 10.1" color LCD touchscreen (4.3" on 10-80 kVA) |
| Connectivity | RS232, USB, programmable dry contacts, 2 optional card slots |
