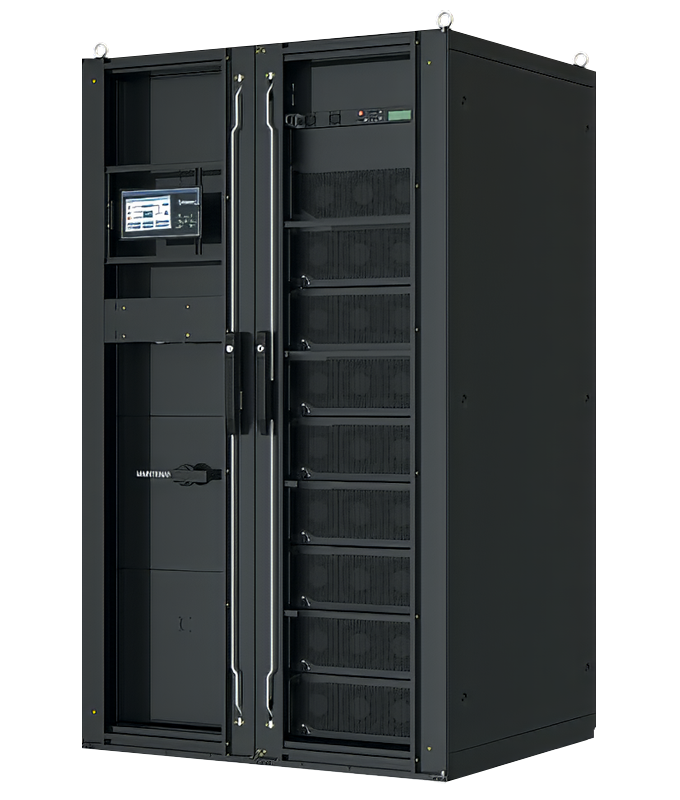

Thor 15-900 kVA
Modular three-phase UPS scalable up to 3.6 MW
Capacity: 15-900 kVA
Request QuoteOverview
The ABLEREX Thor is a modular three-phase UPS based on 15, 25, and 75 kVA/kW hot-swappable modules. Scalable from 15 to 900 kVA with up to 4 units in parallel for 3.6 MW total capacity. Up to 99.3% efficiency in ECO Smart mode. Power factor 1 with Energy Saver function that rotates module operation for extended component life. Lithium-ion compatible with cold start capability.
Key Features
Modular: 15, 25, and 75 kVA hot-swappable modules
Scalable up to 3.6 MW (4 units in parallel)
Up to 99.3% efficiency in ECO Smart mode
Energy Saver — rotates module operation
Lithium-ion compatible, cold start
Full hot-swap for power and bypass modules
Applications
Technical Specifications
| Topology | Online double conversion, modular |
| Modules | 15 / 25 / 75 kVA hot-swappable |
| Capacity | 15-900 kVA per frame |
| Total Scalability | Up to 3.6 MW (4 frames in parallel) |
| Power Factor | 1.0 (kW = kVA) |
| Efficiency | Up to 99.3% ECO Smart, 99.6% ECO mode |
| Transfer Time | Zero in ECO Smart mode |
| Battery | Lithium-ion compatible |
| Cold Start | Yes |
| Capacitor Life | Up to 10 years |
| Energy Saver | Rotates module operation for extended life |
