ablerex

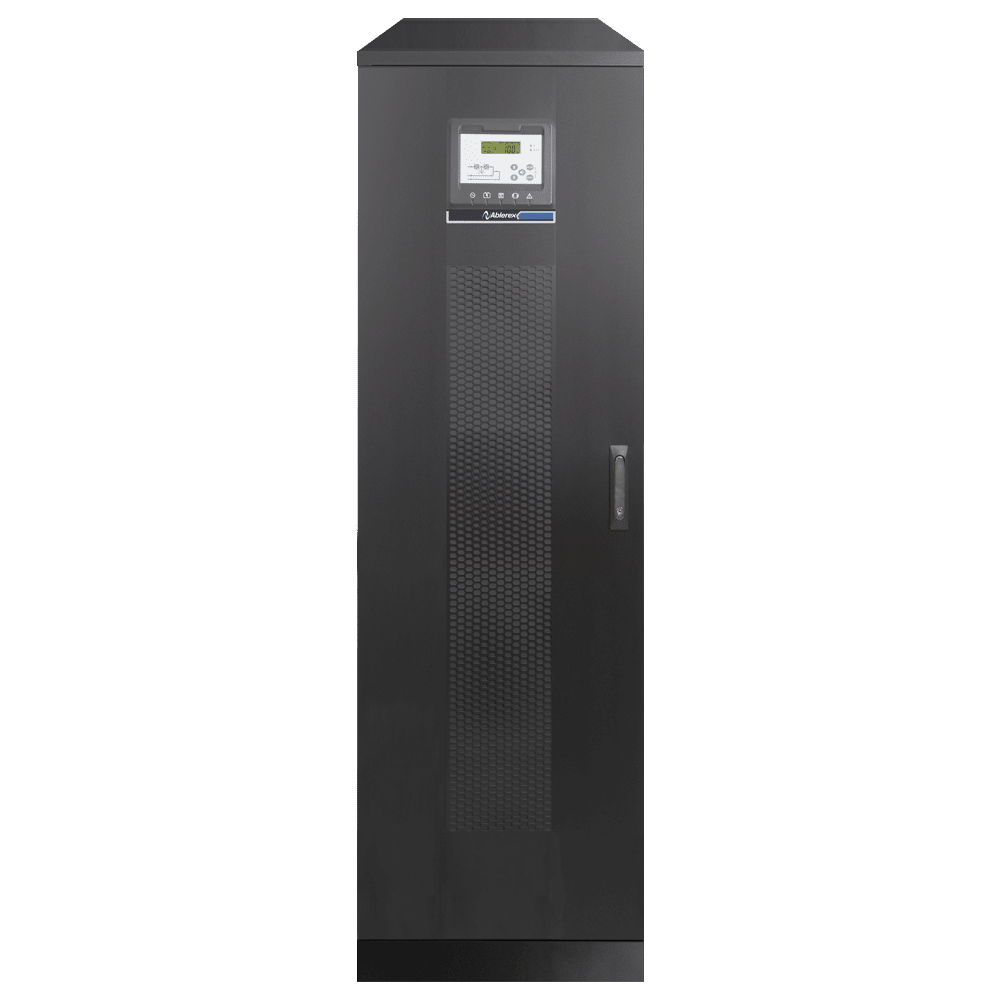

Titan 100-500 kVA
High-power three-phase UPS with IGBT technology
Capacity: 100-500 kVA
Request QuoteOverview
The ABLEREX Titan delivers high-power three-phase protection from 100 to 500 kVA. Features high-efficiency ECO mode up to 99%, power factor 1 with IGBT technology, and THDi less than 3%. Dynamic Charging Mode (DCM), built-in EPO, and integrated backfeed contactor. Up to 6 units in parallel with dual input and internal manual bypass.
Key Features
Up to 99% efficiency in ECO mode
Power factor 1 with IGBT technology
Dynamic Charging Mode (DCM)
Built-in EPO and integrated backfeed contactor
Up to 6 units in parallel, dual input
Internal manual bypass
Applications
Data centersElectromedicalIndustrialMission-critical infrastructure
Technical Specifications
| Topology | Online double conversion (VFI) |
| Capacity | 100 / 120 / 160 / 200 / 250 / 300 / 400 / 500 kVA |
| Power Factor | 1.0 (IGBT technology) |
| Efficiency | Up to 99% in ECO mode |
| THDi | < 3% |
| Charging | Dynamic Charging Mode (DCM) |
| EPO | Built-in |
| Backfeed | Integrated contactor |
| Parallel | Up to 6 units, dual input |
| Bypass | Internal manual bypass |
Interested in Titan 100-500 kVA?
Contact our team for pricing, technical specifications, and sizing guidance.
