APC Easy UPS On-Line SRV Ext. Runtime 1000VA 230V with External Battery Pack

APC Easy UPS On-Line SRV Ext. Runtime 1000VA 230V with External Battery Pack

  • High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

  • Includes: Basic UPS signalling RS-232 cable, CD with software, Country-specific detachable power cord, Qty 1 - DC Cable, USB cable, User Manual

Brand Logo

Network and Server

APC Easy UPS On-Line SRV Ext. Runtime 1000VA 230V with External Battery Pack

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

Includes: Basic UPS signalling RS-232 cable, CD with software, Country-specific detachable power cord, Qty 1 - DC Cable, USB cable, User Manual


  • Automatic internal bypass

    Supplies utility power to the connected loads in the event of a UPS power overload or fault.

  • Automatic restart of loads after UPS shutdown

    Automatically starts up the connected equipment upon the return of utility power.

  • ECO Mode

    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

  • Input power factor correction

    Minimizes installation costs by enabling the use of smaller generators and cabling.

  • Intelligent battery management

    Maximizes battery performance, life, and reliability through intelligent, precision charging.

  • Intelligent SmartSlot

    Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.

  • LCD graphics display

    Text and mimic diagrams that display modes of operation, system parameters and alarms.

  • Serial connectivity

    Provides management of the UPS via a serial port.

  • USB connectivity

    Provides management of the UPS via a USB port (not available on all models).

Easy UPS On-Line Features & Benefits


Serviceability

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Audible alarms

Provides notification of changing utility power and UPS power conditions

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Availability

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.


Features

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Management Software

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Management Software

Allows you to easily monitor your utility power and manage your UPS.

High efficiency

High efficiency rates that remain stable even at lower operating power levels

Input Power Factor Correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

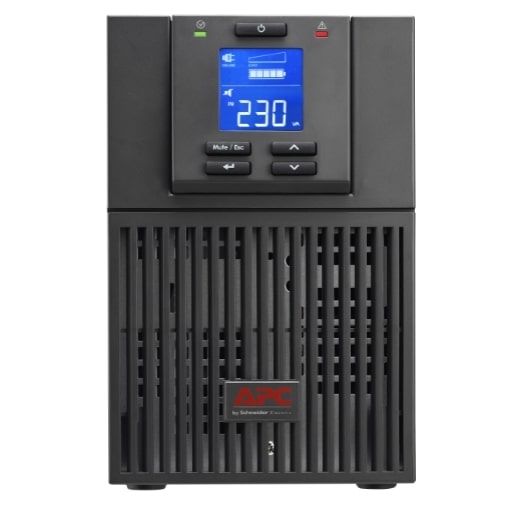

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.


Manageability

SmartSlot

Customize UPS capabilities with management cards.

Serial connectivity

Provides management of the UPS via a serial port.

Network manageable

Provides remote power management of the UPS over the network.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.


Technical Specifications

Output

Max Configurable Power (Watts)

800Watts / 1.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

88.0 %

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Bypass

Internal Bypass (Automatic and Manual)


Input

Input frequency

40 - 70 Hz

Input voltage range for main operations

160 - 280V

Input voltage adjustable range for mains operation

110 - 285 (half load)V

Number of Power Cords

1

Efficiency at Full Load

88.0 %

Other Input Voltages

220, 240


Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

4hour(s)

Battery Charge Power (Watts)

129Watts

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

516

Extended Run Options

APC-Easy-UPS-On-Line-SRV-Ext-Runtime-1000VA-230V-with-External-Battery-Pack

Runtime

View Runtime Graph

View Runtime Chart

Efficiency

View Efficiency Graph


Communications & Management

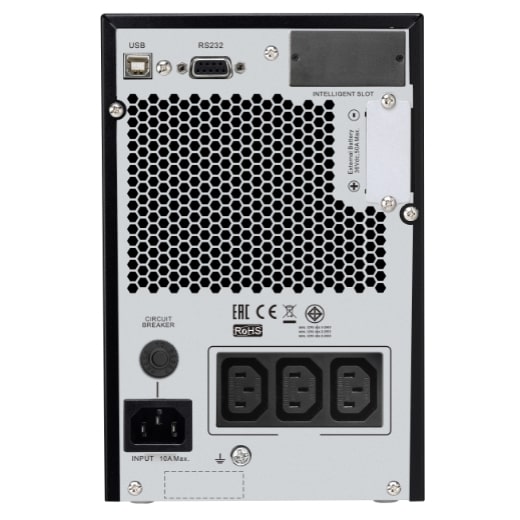

Interface Port(s)

DB-9 RS-232, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

--

Available SmartSlot™ Interface Quantity

1


Surge Protection and Filtering

Surge energy rating

600Joules

Physical

Maximum Height

238MM, 23.8CM

Maximum Width

290MM, 29.0CM

Maximum Depth

400MM, 40.0CM

Net Weight

24.0KG

Shipping weight

26.7KG

Shipping Height

355MM, 35.5CM

Shipping Width

470MM, 47.0CM

Shipping Depth

525MM, 52.5CM

Color

Black


Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 (non-condensing) %

Operating Elevation

0-3000meters

Storage Temperature

-20 - 50 °C

Storage Relative Humidity

0 - 95 (non-condensing) %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

50.0dBA

Protection Class

IP 20
