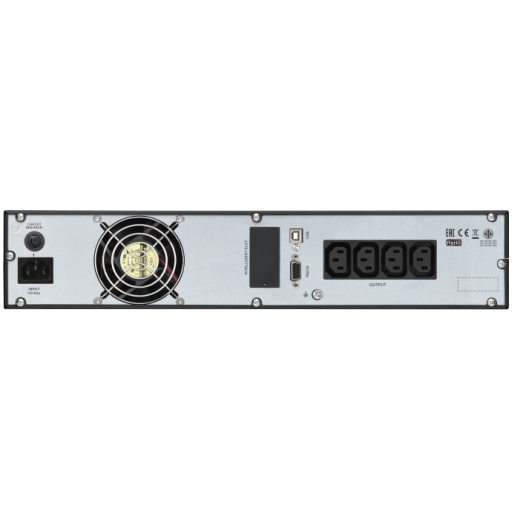

APC Easy UPS On-Line SRV RM 2000VA 230V

APC Easy UPS On-Line SRV RM 2000VA 230V

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

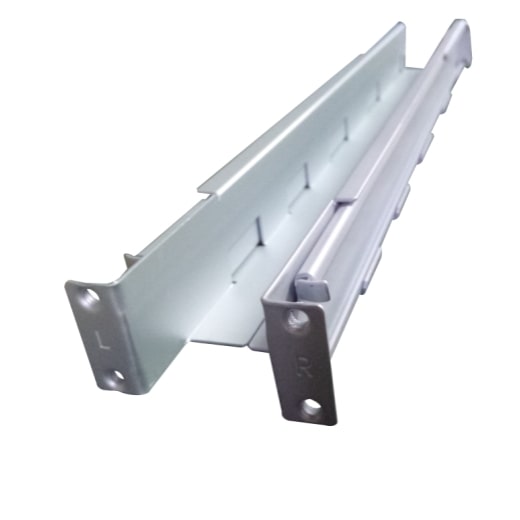

Includes: Basic UPS signalling RS-232 cable, CD with software, Rack Mounting brackets, USB cable, User Manual

• Automatic internal bypass

  Supplies utility power to the connected loads in the event of a UPS power overload or fault.

• Automatic restart of loads after UPS shutdown

  Automatically starts up the connected equipment upon the return of utility power.

• ECO Mode

  Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

• Input power factor correction

  Minimizes installation costs by enabling the use of smaller generators and cabling.

• Intelligent battery management

  Maximizes battery performance, life, and reliability through intelligent, precision charging.

• Intelligent SmartSlot

  Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.

• LCD graphics display

  Text and mimic diagrams that display modes of operation, system parameters and alarms.

• Serial connectivity

  Provides management of the UPS via a serial port.

• USB connectivity

  Provides management of the UPS via a USB port (not available on all models).

Easy UPS On-Line Features & Benefits

Manageability

Serial connectivity

Provides management of the UPS via a serial port.

SmartSlot

Customize UPS capabilities with management cards.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Network manageable

Provides remote power management of the UPS over the network.

Serviceability

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Audible alarms

Provides notification of changing utility power and UPS power conditions

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Features

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Management Software

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Input Power Factor Correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Management Software

Allows you to easily monitor your utility power and manage your UPS.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

High efficiency

High efficiency rates that remain stable even at lower operating power levels

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Technical Specifications

Output

Max Configurable Power (Watts)

1.6kWatts / 2.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

88.0 %

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Bypass

Internal Bypass (Automatic and Manual)

Input

Input frequency

40 - 70 Hz

Input voltage range for main operations

160 - 280V

Input voltage adjustable range for mains operation

110 - 285 (half load)V

Number of Power Cords

1

Efficiency at Full Load

88.0 %

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

4hour(s)

Battery Charge Power (Watts)

76Watts

Battery Volt-Amp-Hour Capacity

304

Runtime

View Runtime Graph

View Runtime Chart

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

DB-9 RS-232, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

--

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

600Joules

Physical

Maximum Height

86MM, 8.6CM

Maximum Width

437MM, 43.7CM

Maximum Depth

462MM, 46.2CM

Net Weight

18.2KG

Shipping weight

20.7KG

Shipping Height

142MM, 14.2CM

Shipping Width

551MM, 55.1CM

Shipping Depth

599MM, 59.9CM

Color

Black
