Overview

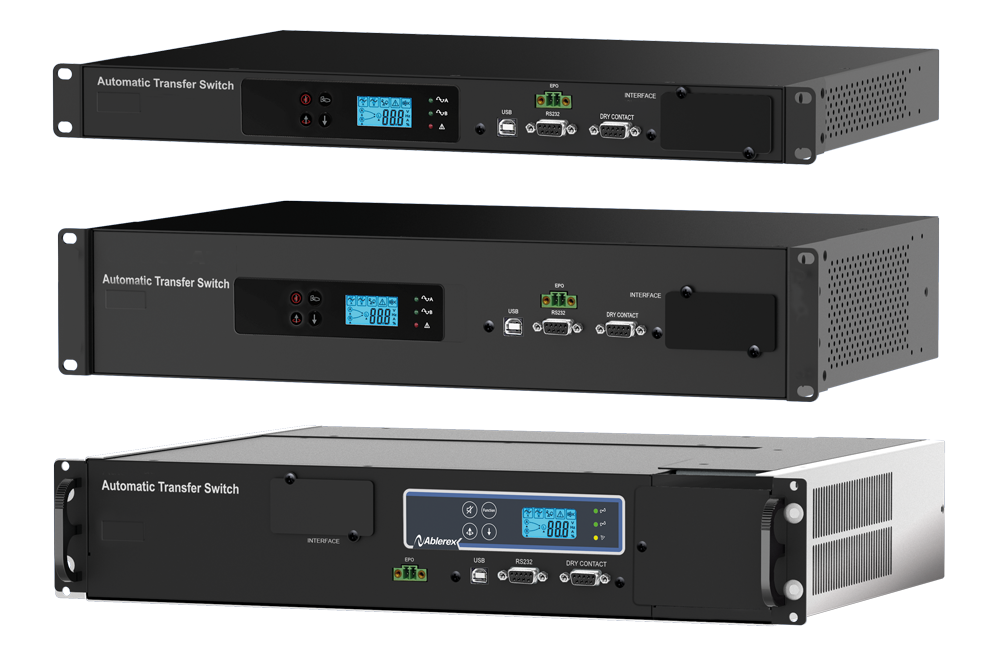

The ABLEREX ATS (ERMES) provides automatic transfer switching between two independent power sources with 8-12 ms transfer speed. Available in 16A (1U rack) and 32A (2U rack) versions. The 16A version features 8x IEC C13 + 1x IEC C19 outlets; the 32A version provides 12x IEC C13 + 2x IEC C19 + terminal connections. LCD display, USB, RS232, and dry contact relay included. ITS version available with hot-swappable manual bypass for 100% continuity.
Key Features
8-12 ms transfer speed between two independent sources
16A (1U) and 32A (2U) rack-mount versions
LCD display with USB, RS232, dry contact relay
ITS version: hot-swappable with manual bypass
Optional SNMP/web card and RS485
Applications
Server roomsData centersNetwork infrastructureCritical IT equipment
Technical Specifications
| Transfer Speed | 8-12 ms |

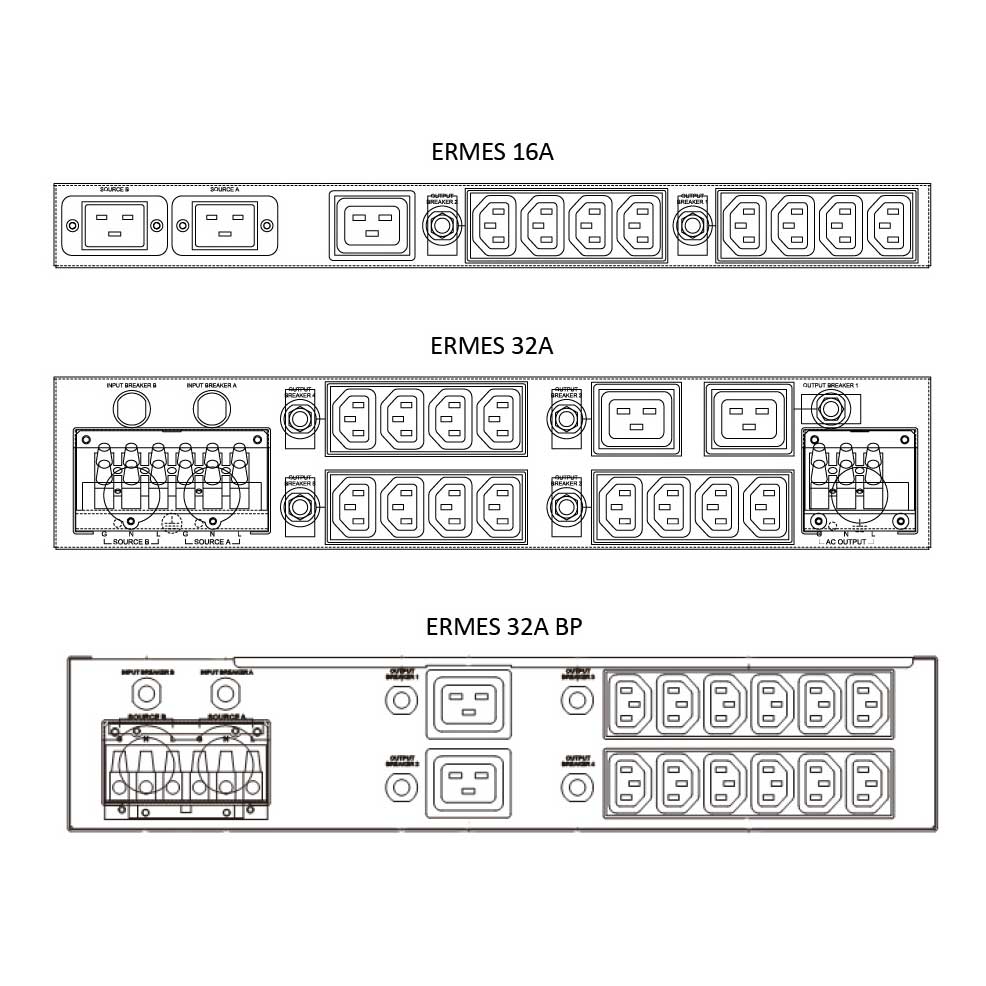

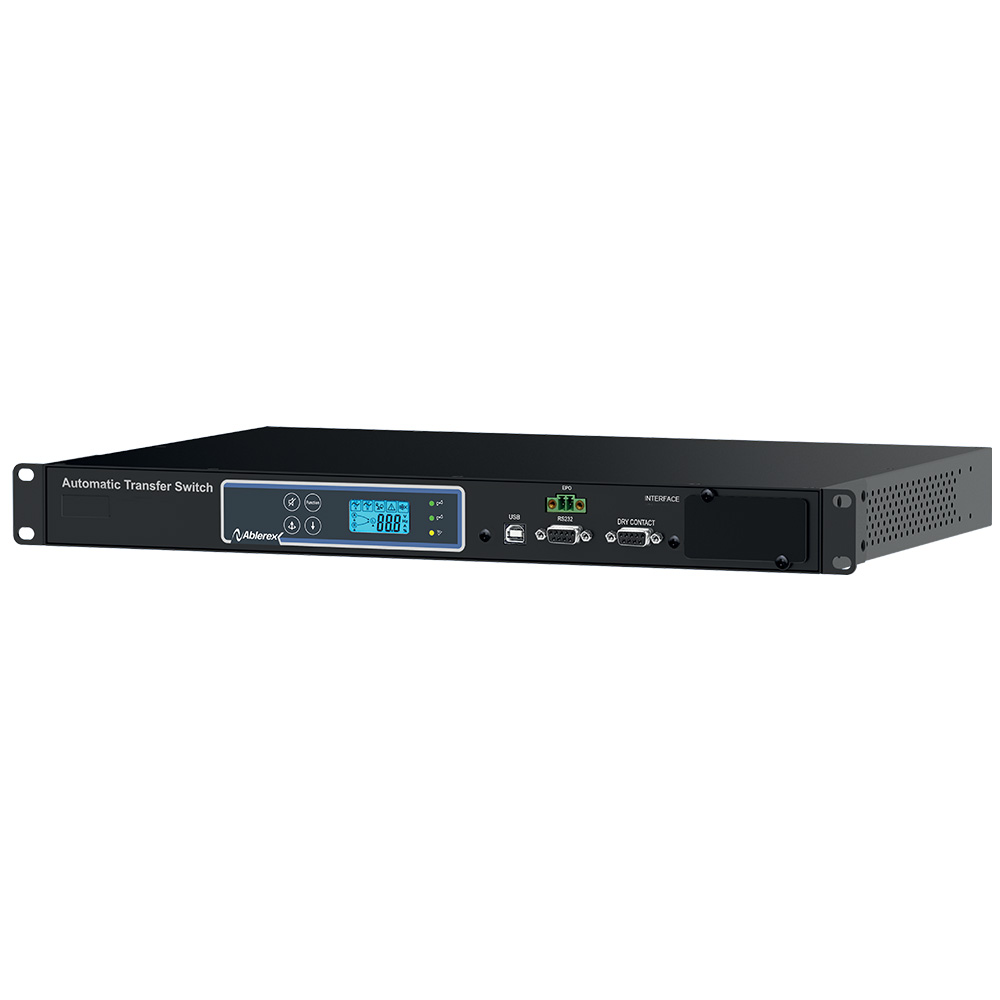

| 16A Version | 1U rack, 8x IEC C13 + 1x IEC C19 |

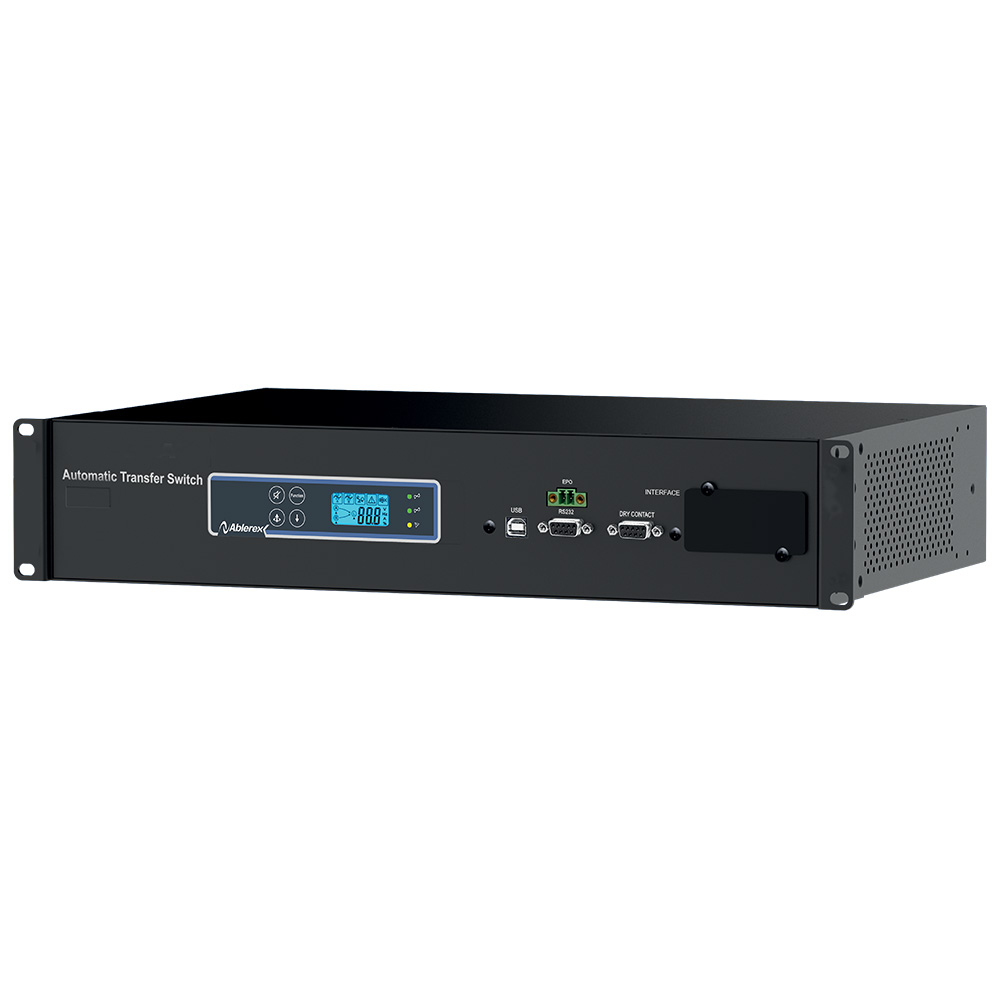

| 32A Version | 2U rack, 12x IEC C13 + 2x IEC C19 + terminals |
| Display | LCD |
| Safety | EPO included |
| Connectivity | USB, RS232, dry contact relay |
| Optional | SNMP/web card, RS485 |

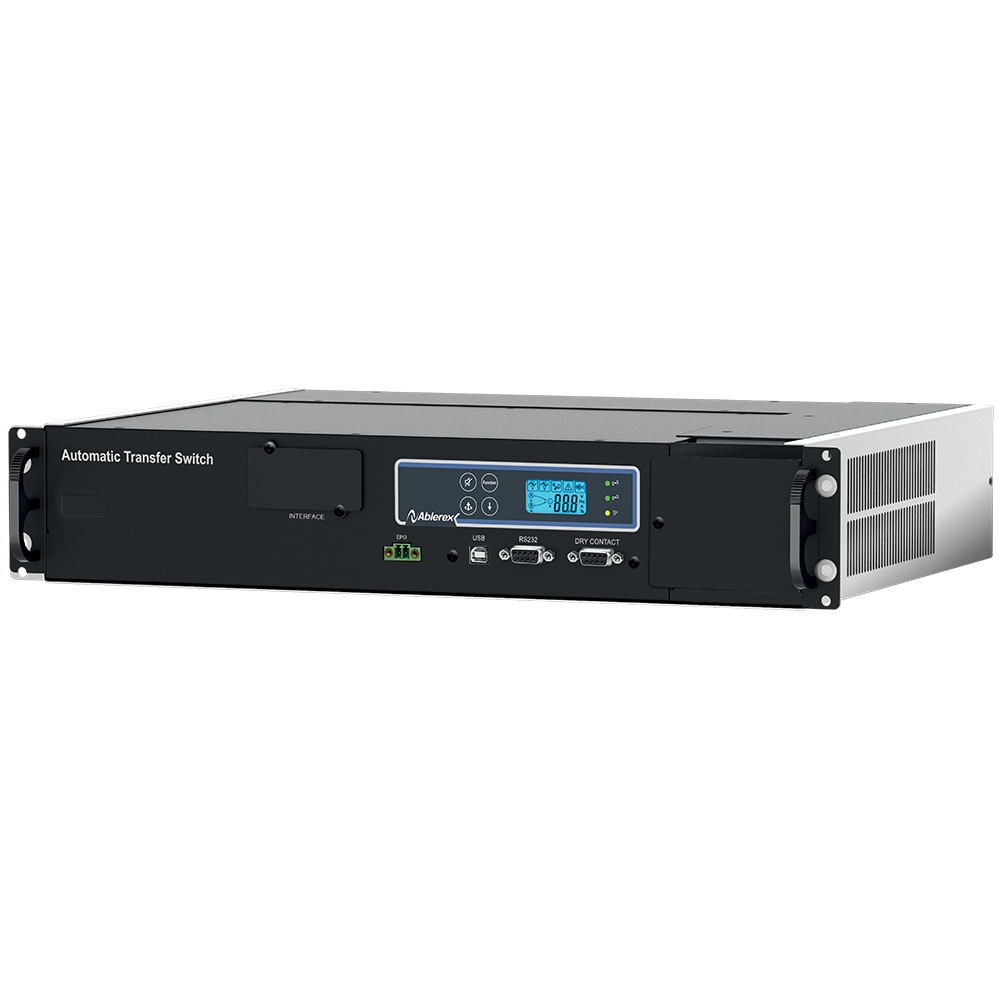

| ITS Version | Hot-swappable with manual bypass |
Interested in ABLEREX ATS?
Contact our team for pricing, technical specifications, and sizing guidance.
