MAXIMUM ACTIVE HARMONICS AND POWER FACTOR COMPENSATION

Maximum active harmonics and power factor compensation with modular structure adaptable for every size of application.Ablerex Active Power Filters (APF) in modular topology are the ideal solution to compensate variable power factor and harmonics.With high current ratings from 320A to 480A they are adapted to any load size for maximum versatility of use.

Brand Logo

Power Quality UPS

Features

  • 3 level converter based on multi DSP control technology
  • Space-saving high power density design
  • The same model applies 3 Phase 3 Wires/ 4 Wires System
  • Can work in closed or open loop
  • Compensate up to 51st harmonics with response time of less than 1ms
  • Selective mode - Choice of the harmonics to compensate
  • Power Factor Correction
  • Correct unbalanced three phase utility
  • No overload effects
  • Advanced operations interface: 7”Color LCD Touch Screen to set all system’s parameters and read the 500 lines logfile
  • SD card to download logfile, records waveform and parameter
  • Display voltage/current waveform, parameter and frequency spectrum
  • Multiple languages
  • Customizable LCD SW with logo
  • Complete standard communication: 3x output and 1x input dry contact, RS485 ModBus, ethernet, settable e-mail alarm

SPECIFIC FOR MODULAR

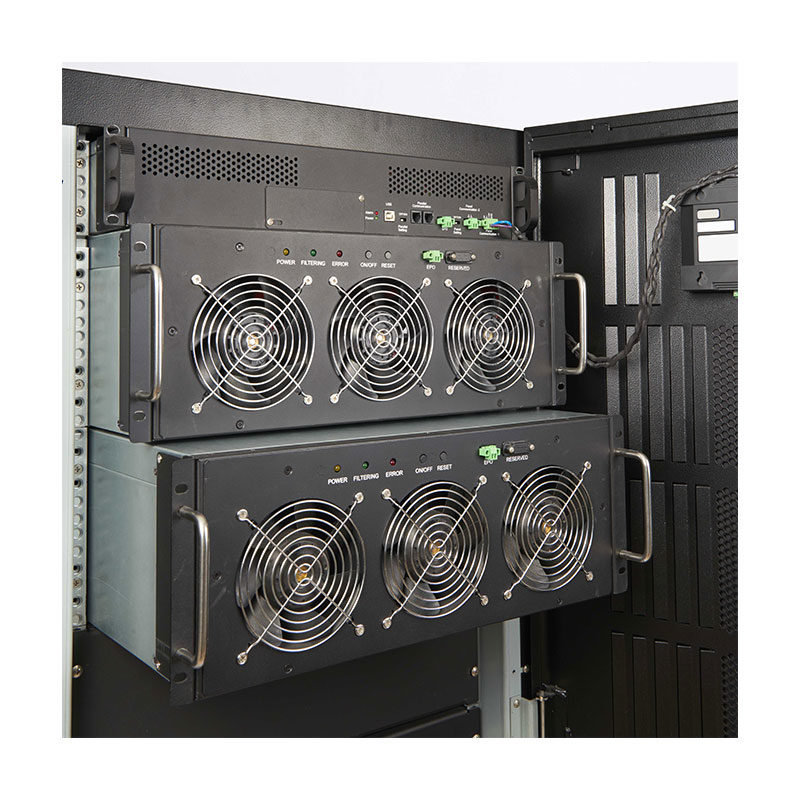

  • Easy hot-scalable and hot-swappable power modules
  • 60 or 80A per module, up to 1920A with 24 in parallel
  • 1 LCD screen for all the parallel system
  • 1 Control Module for 8 Power Modules

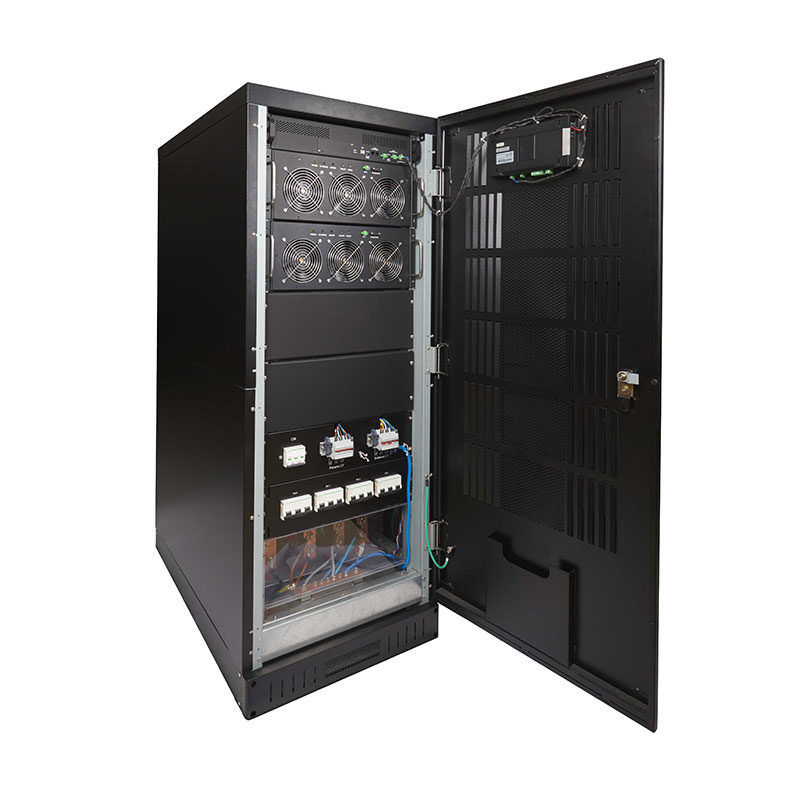

  • Easy to install in standard 19” rack cabinet
