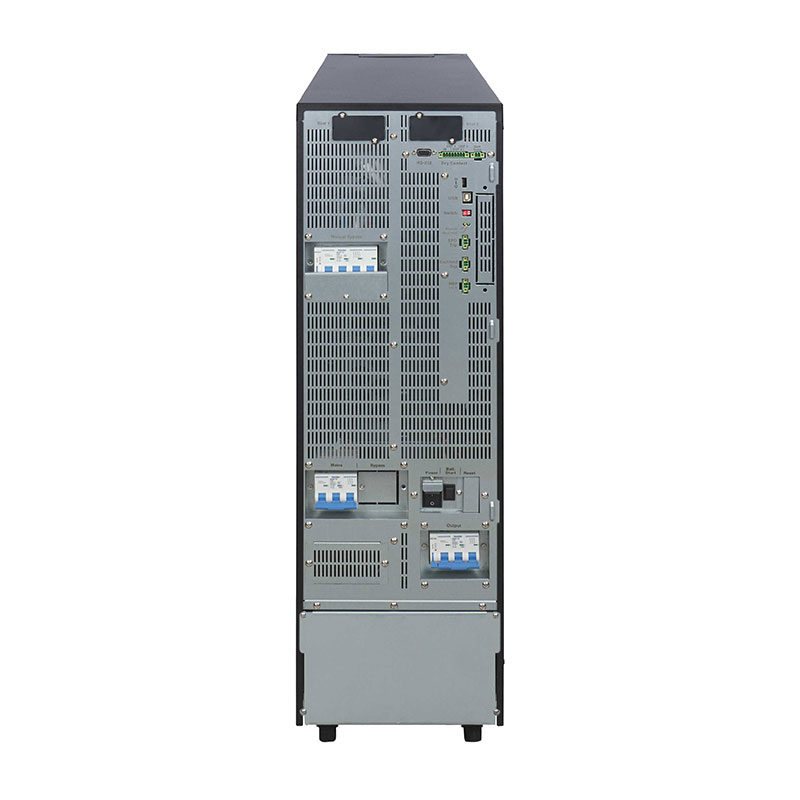

KRONOS

TECHNOLOGY, PERFORMANCE AND VALUE FOR MONEY IN THE SMALLEST FOOTPRINT

10kVA ~ 40kVA

Thanks to its reduced footprint, Kronos is the optimum choice when the available space is limited.Moreover, the included features meet the needs of the majority of IT installations with a very positive value-for-money.

Three Phase

Description

Features

The smallest footprint of its category: 0,22m2 for 20kVA with 40x9Ah internal batteries
Up to 95% efficiency in online mode
Built-in high current battery charger (10kVA with up to 7A standard charger)
4 poles manual bypass and Breakers
Easy maintenance thanks to the vertical boards
Generator compatibility with ramp up configurable in power and time delay
Wrong phase sequence rotation protection
THDi <3% for a minimized grid impact
High overload capability up to 1 minute @150%
Cold start function included
Logfile, UPS information and settings easily downloadable on removable SD card from LCD,
to simplify service operations
Up to 40 x 9Ah internal battery
Wide range of battery number per string from 26 to 40 LCD settable
Parallelable up to 6 units, in power or redundancy, LCD settable
Standard separate or common batteries for parallel systems
Touch screen display for quick and user friendly operation
Wide communication offer as a standard: two com slots, RS232, USB, programmable dry contacts
