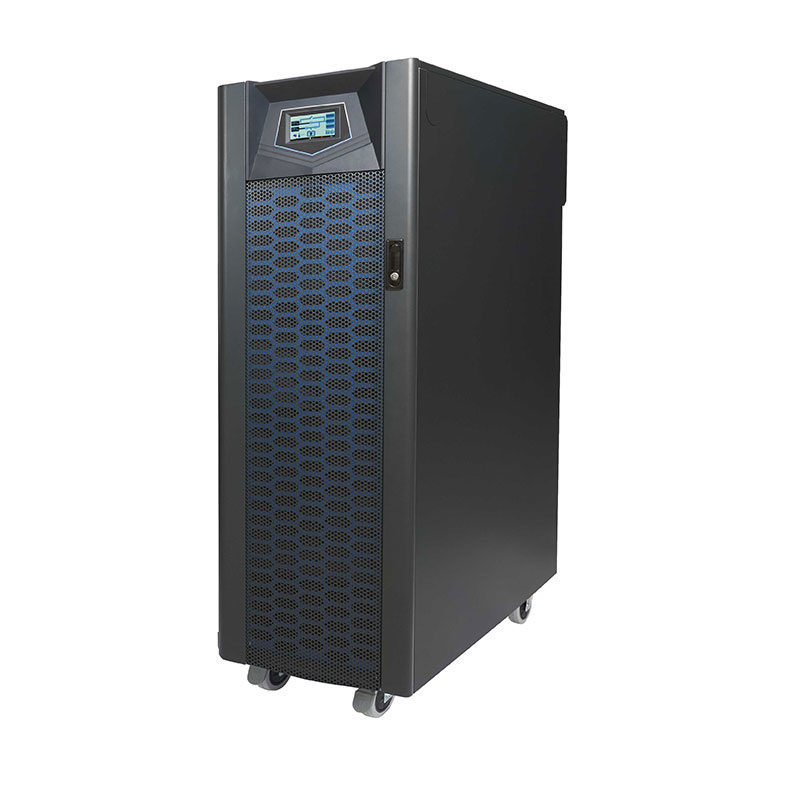

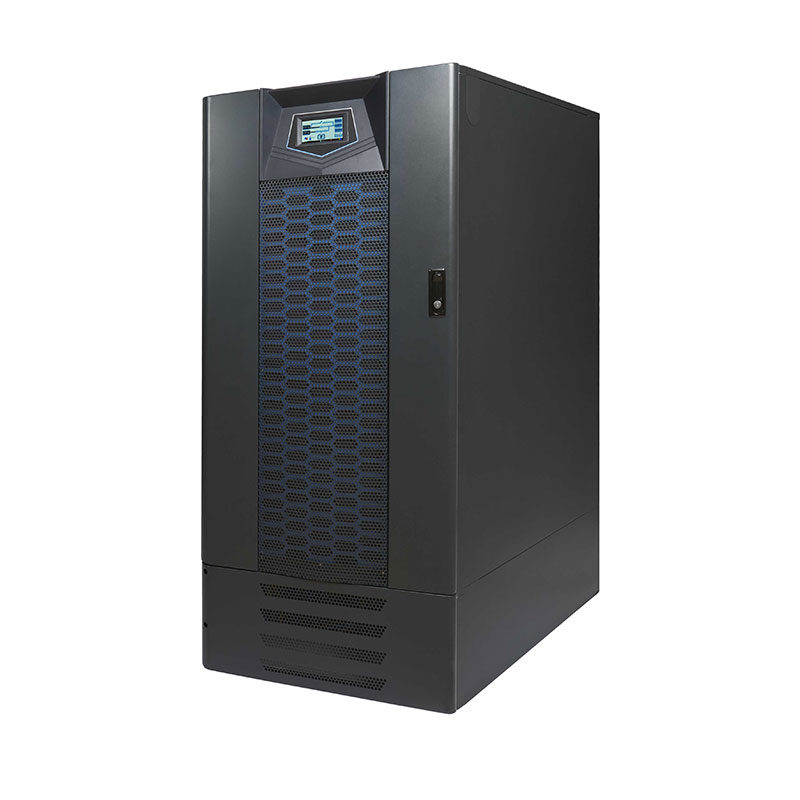

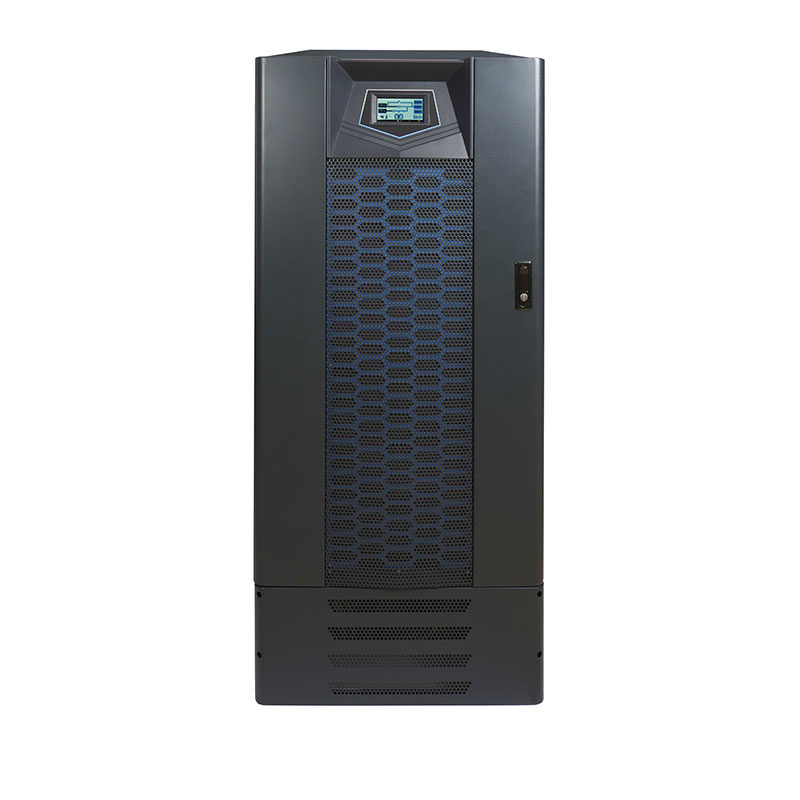

TAURUS

Features

• Generative loads compatibility with patented function to efficiently use reinjected energy
• Generator compatibility with ramp up configurable in power and time delay with wide input frequency range
• Wrong Phase Sequence Rotation Proof, the UPS can always supply the load under inverter
• Touch screen colour LCD display for quick and user-friendly operation (14 selectable languages)
• UPS information, settings and log file easily downloadable on removable SD card from LCD
• Flexible High Power Charger, with two strings of internal batteries up to 40kVA
• Wide range of battery number per string from 32 to 40 LCD settable (26-40 for 10kVA)
• Ready for Li-ion or other battery technology
• Real Time Battery Detection - immediate alarm once battery disconnected
• Smart Battery Discharge - For Battery Discharge Test without extra loads and connections
• Dual input and internal manual bypass, 440mm wide fits into higher IP cabinets
• Cold start (standard up to 20kVA, optional up to 80kVA)
• Parallelable up to 6 units, in power or redundancy with Common or Separate battery LCD settable
• Wide communication offer as a standard: two com slots, RS232, USB, programmable dry contacts
• Strong overload capacity (up to 300% for 3 seconds) to guarantee selectivity in the downstream installation

Options

• SNMP, RS485, Modbus board, Parallel kit
• Internal battery trays for easily battery service
• Internal isolation transformer (up to 40kVA)
• External Temp. sensor and battery cabinets
• Remote Touch Panel suitable to monitor up to 64 units with 3 prog. build-in Output Dry Contacts
